    GRUNDODRILL JCS130
    JCS – JET CONDITION SYSTEM – FOR BORES IN LOOSE ROCK
    TECHNICAL SPECIFICATIONS
    • Cummins engine Tier 5, 100 kW
    • Variable torque and speed adjustment for maximum rotational performance and maximum productivity at any speed
    • Fully automatic drilling operation incl. drill rod exchange and all other secondary activities
    • Comfort operator’s cabin*1 incl. Grammer comfort seat (with air suspension*1), central locking, electronic immobiliser, heating, air conditioning*1 or automatic climate control*1, radio, hands-free equipment, bottle cooler
    • Powerful bentonite HD pumps on board – full flow at maximum pressure for highest productivity
    • Innovative and intuitive operating concept, radio remote control for remote-controlled drilling*1
    • Compatible with all digital solutions by TRACTO-TECHNIK
    • Numerous other options available

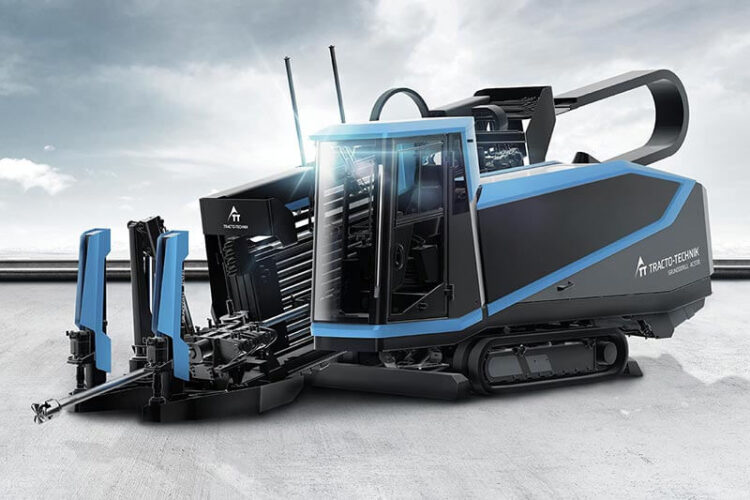

    TEST TRACK FOR THE NEW GRUNDODRILL JCS130

    With the new generation of GRUNDODRILL HDD rigs – introduced at bauma 2019 – TRACTO-TECHNIK has recently developed a unique machine concept, which in future will be applied to a complete new series with six models available as Jet Condition System (JCS) with normal drill rods for loose stony ground, or as an All Condition System (ACS) with twin-tube drill rods for difficult geologies and rocks.

    TECHNICAL SPECIFICATIONS
    PERFORMANCE DATA DRILL ROD TYPE EL D67 metrical DRILL ROD TYPE EL D67 imperial
     Thrust and pullback force:  130 kN  29,225 lbf
     Max. feed rate (without load):  70 m/min  230 ft/min
     Max. torque EL D67:  4.500 Nm  3,320 lbf ft
     Max. spindle speed EL D67:  185 U/min  185 rpm
     HP bentonite pump P62:

    		  190 l/min  50 gpm
     Bentonite pressure P62 85:  85 bar  1,233 psi
    HP bentonite pump P72:  320 l/min  85 gpm
     Bentonite pressure P72:  70 bar  1,015 psi
     Rod magazine contents EL D67:  168 m  551 ft
     Number of rods:  56 pcs  56 pcs
     Effective rod length:  3.000 mm  118 in
     Pilot bore EL D67:  100 mm  4.00 in
     Min. bore radius EL D67:  32 m  105 ft

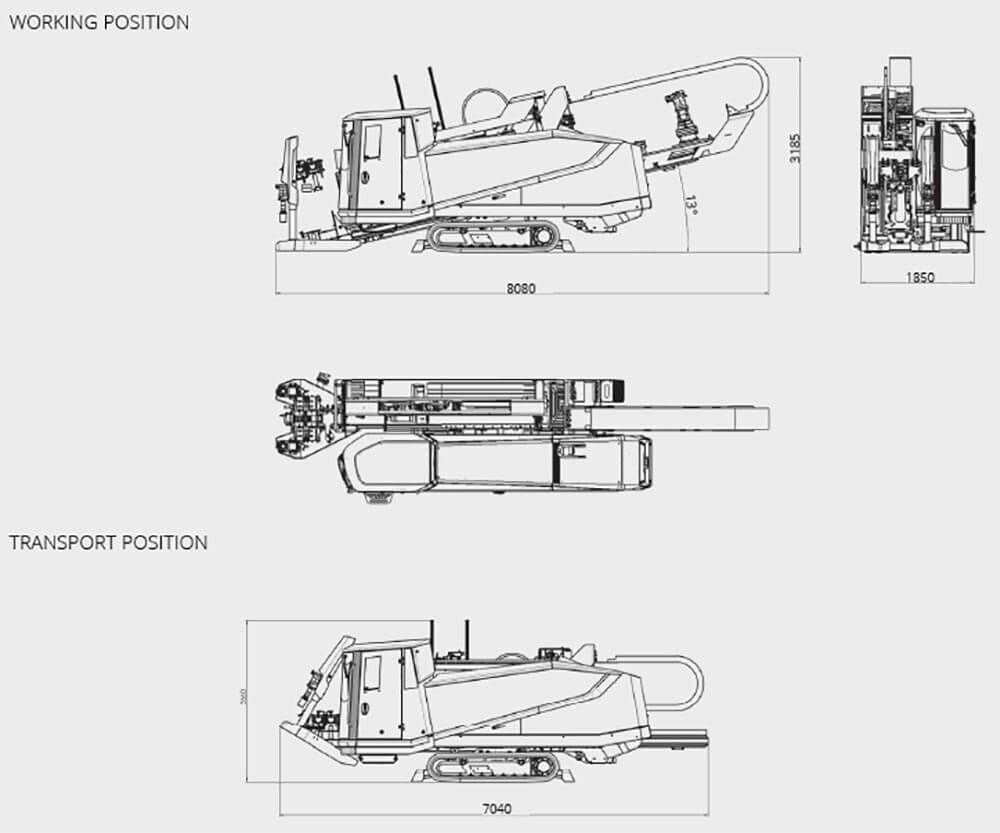

     Length x Width x Height (transport position)*2:  7.040 x 1.850 x 2.660 mm  277 x 72.8 x 104.7 in
     Length x Width x Height (working position)*2:  8.080 x 1.850 x 3.185 mm  318.1 x 72.8 x 125.4 in
     Max. weight *2:  tbd kg tbd lbs
     Engine manufacturer: Cummins  Cummins
     Engine type:

    		  F3.8  F3.8
     Max. engine output:  100 kW  136 hp
     Diesel tank capacity:  134 l  35 gal
     AdBlue tank capacity:  18,9 l  5 gal
     Fresh water tank capacity:  120 l  32 gal
     Inclination angle:  0–30 °  0–30 °
     Upsizing Ø* ≤ Outer pipe Ø*:  500/400 mm  20/16 in
     Bore length* ≤:  300 m  984 ft

    * depending on soil | *1 Option | *2 depending on configuration:
