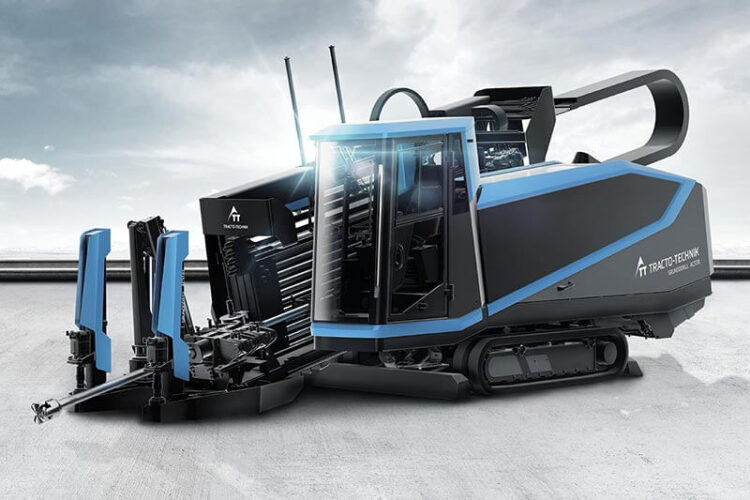

GRUNDODRILL ACS130
GRUNDODRILL ACS130
ACS – ALL CONDITION SYSTEM – FOR DRILLING IN ALL GEOLOGIES INCL. SOLID ROCK/ROCK
TECHNICAL SPECIFICATIONS
- Cummins engine Tier 5, 115 kW
- Can optionally be used with EL-D80 twin-tube rods or EL-D67 JET rods
- Variable torque and speed adjustment for maximum rotational performance and maximum productivity at any speed
- Fully automatic drilling operation incl. drill rod exchange and all other secondary activities
- Comfort operator’s cabin*1 incl. Grammer comfort seat (with air suspension*1), central locking, electronic immobiliser, heating, air conditioning*1 or automatic climate control*1, radio, hands-free equipment, bottle cooler
- Powerful bentonite HD pumps on board – full flow at maximum pressure for highest productivity
- Innovative and intuitive operating concept, radio remote control for remote-controlled drilling*1
- Compatible with all digital solutions by TRACTO-TECHNIK
- Numerous other options available
TRACTO-TECHNIK MACHINE DESIGN NOMINATED FOR BAUMA INNOVATION AWARD
Every three years, bauma is the innovation driver for the international construction equipment, building material and mining machinery industries. No other trade fair than bauma of the sector presents so many new products and developments. VDMA, the German Engineering Federation, bauma and the head organisations of the German construction industry are launching the innovation prize in the run-up to bauma.
With the award, the organisers honour research and development teams of companies and institutes of higher education who have developed cutting-edge technology of high practical use to market readiness with a special focus on the environment, resource efficiency and people
TECHNICAL SPECIFICATIONS
| PERFORMANCE DATA |
DRILL ROD TYPE EL D80 / EL D67 | DRILL ROD TYPE EL D80 / EL D67 |
|---|---|---|
| metrical | mperial | |
| Thrust and pullback force: | 130 kN | 29,225 lbf |
| Max. feed rate (without load): | 70 m/min | 230 ft/min |
| Max. torque EL D80 / EL D67: |
4.500 Nm | 3,320 lbf ft |
| Max. torque EL D80 (inner rod): | 1.200 Nm | 885 lbf ft |
| Max. spindle speed EL D80 / EL D67: | 230 U/min | 230 rpm |
| Max. spindle speed EL D80 (inner rod): |
400 U/min | 400 U/min |
| HP bentonite pump P62: | 190 l/min | 50 gpm |
| Bentonite pressure P62 85: | 85 bar | 1,233 psi |
| HP bentonite pump P72: | 320 l/min | 85 gpm |
| Bentonite pressure P72: | 70 bar | 1,015 psi |
| Rod magazine contents EL D80 / EL D67: | 120/168 m | 394/551 ft |
| Number of rods: | 40/56 cs | 40/56 pcs |
| Effective rod length: | 3.000 mm | 118 in |
| Pilot bore Ø EL D80 / EL D67: | 140/100 mm | 5.5/4 in |
| Min. bore radius EL D80 / EL D67: | 35/32 m | 115/105 ft |

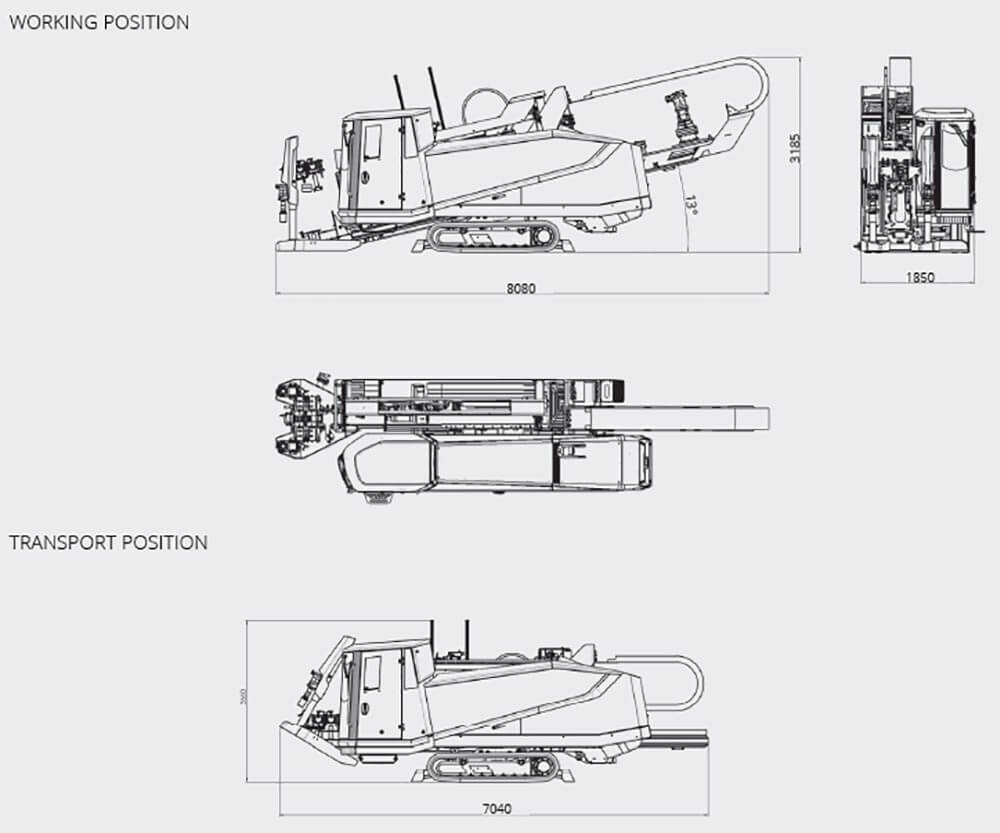

| Length x Width x Height (transport position)*: | 7.490 x 1.850 x 2.660 mm | 295 x 72.8 x 104.7 in |
| Length x Width x Height (working position)*: | 8.450 x 1.850 x 3.185 mm | 332.7 x 72.8 x 125.4 in |
| Max. weight*: | 11.869 kg | 26,167 lbs |
| Engine manufacturer: | Cummins | Cummins |
| Engine type: | F3.8 | F3.8 |
| Emissions standard: | Step V | Step V |
| Max. engine output: | 115 kW | 156 hp |
| Diesel tank capacity: | 134 l | 35 gal |
| AdBlue tank capacity: | 18,9 l | 5 gal |
| Fresh water tank capacity: | 120 l | 32 gal |
| Inclination angle: | 0–30 ° | 0–30 ° |
| Jet mode: Upsizing Ø* ≤ Outer pipe Ø* ≤: | 500/400 mm | 20/16 in |
| Jet mode: Bore length* ≤: | 300 m | 984 ft |
| Rock mode: Upsizing Ø* ≤ / Outer pipe Ø* ≤: | 355/250 mm | 14/10 in |
| Rock mode: Bore length* ≤: | 200 m | 656 ft |
* depending on soil | *1 Option:
