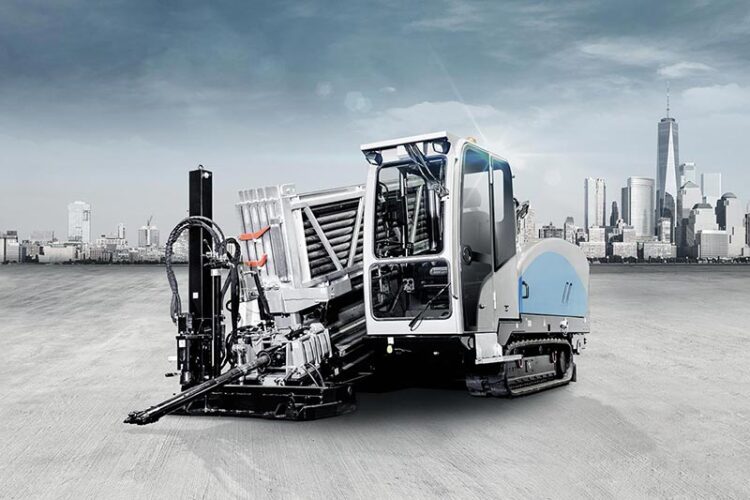

    • GRUNDODRILL – 15XP / 15XPT

    ALLROUNDERS

    SUCCESSFUL DUO
     EFFICIENTLY FLEXIBLE

    MAXIMUM FLOW RATE

    The Bentonite pump delivers max. 200 or 320 l/min for maximum productivity and quick drilling progress, even with large upsizing diameters

    SIMPLE RELOADING

    • If the rod supply in the magazine is not sufficient for the operation, single rods can be reloaded.
    • The drill rod is placed into the side feeding device by hand, from where it is transported to the magazine automatically.
    • The rod magazine works fully automatically inreloading mode – therefore no machine operator is required in the cabin.

    01. Anchor drilling system for even greater stability during drilling – optionally available with anchoring hammer system. Integrated high-pressure cleaner – for convenient cleaning of the drill rig for automatic cleaning of drill rods during upsizing/pipe pulling
    02. Spacious rod magazine with to 210 m on board. Option: Fully automatic rod exchange for high productivity and relief of the machine operator. Rotation of the drill rods within the rod box during normal operation for even wear of the drill rods.
    03. Comfortable swivelling cabin user-friendly, clearly arranged, flexibly positionable
    04. Large GFRP service hood easily accessible for service and maintenance
    05. Broad, rubber track undercarriage – extremelyeffective off-road and stable, optionally also available with rubberised steel chains
    06. Collecting tray for Bentonite with (optional) Bentonite suction pump

    GROUND CONTROL

    FULL VISION, MAXIMUM COMFORT

    MAXIMUM OPERATING COMFORT

    Manual mode:
    All machine functions controlled by the machine operator
    Semi-automatic mode:
    Memory functions for rotation and feed, Automatic paddle mode*, Automatic rod exchange mode*, Automatic reloading for rod magazine*
    Fully automatic mode*:
    incl. automatic drilling, automatic rod change, rod lubrication and cleaning, etc.
    Service mode:
    Complete diagnosis of drilling system via integrated display, Complete parameter setting/adjustment of drilling rig via integrated display

    TOP WORKPLACE

    • Panel PC with touchscreen and internet connection
    • High-resolution colour display
    • Language selection
    • Automatic drill data log according to DVGW standards
    • Remote diagnosis with telemetry data transfer
    • LED lighting
    • Radio with Bluetooth hands-free system, CD drive and USB port

    CUSTOM ERGONOMICS

    • Grammer comfort seat
      • Mechanical suspension, manual weight distribution
      • Can be adjusted individually
      • Leatherette upholstery
    • Panorama glazing for optimum overview
    • Swivelling cabin, can be locked in 5 positions
      • If required, work can also be carried out with the cabin in transport position
    • Heating and air conditioning*
    *optional
    TECHNICAL SPECIFICATIONS
    BASIC EQUIPMENT
    • Cummins engine Tier 4 final, Stage IV
    • Drill rig with rubber track undercarriage, stabiliser
    • Radio remote control
    • Spacious cabin, comfort seat, joysticks, panel PC with touch screen
    • Bore automatics
    • Semi-automatic rod exchange system
    • Semi-automatic clamping and releasing device
    • Anchoring system with Bentonite collection tray
    • Powerful Bentonite HP pump on board the rig
    • Bore data log – Data transmission
    • HP cleaner
    • Optional: bore automatics, percussive unit, rubberized steel tracks, air conditioning system
    BACKBONE CONNECTION WITH GRUNDODRILL 15XP
    The list of Germany’s so-called households with poor access to modern data networks is still quite long, despite the German Government’s Digital Agenda, claiming that the NGA-Networks („Next Generation Access“) were supposed to be made available to the whole country by the end of 2018. This is not a great surprise, as the time from the application being sent to the German Support Programme for Digitalisation up to the surf start on home computers being stretched to the limit, much longer than expected.
    FIND OUT MORE…
    TECHNICAL SPECIFICATIONS

    PERFORMANCE DATA GRUNDODRILL 15XP TD 61 DRILL ROD GRUNDODRILL 15XPT TD73 DRILL ROD
     Thrust and pullback force [kN]:  147 (33.05 lbf)  160 (35.97 lbf)
     Max. feed rate (without load) [m/min]:  48 (157 ft/min)  48 (157 ft/min)
     Max. torque [Nm]:  4.500 (3319 lbf ft)  6.500 (4794 lbf ft)
     Max. spindle speed [rpm]:  185  190
     HP Bentonite pump P62 · P72/320 [l/min]:  200 · 320 (53 · 85 gpm)  200 · 320 (53 · 85 gpm)
     Bentonite pressure P62 · P72/320 [bar]:  90 · 110 (1,305 · 1,595 psi)  90 · 110 (1,305 · 1,595 psi)
     Rod magazine contents [m]:  210 (689 ft)  180 (591 ft)
     Number of rods [pcs]:  70  60
     Drill rod Ø fitted · smooth [mm]:  62/54 · 62 (2.44/2.13 · 2.44 in)  73/63 (2.87/2.48 in)
     Effective rod length [mm]:  3.000 (118 in)  3.000 (118 in)
     Rod weight fitted · smooth [kg]:  26 · 31 (57.32 · 68.34 lbs)  42 (92.59 lbs)
     Pilot bore Ø [mm]:  100 (3.94 in)  115 (4.53 in)
     Min. bore radius fitted · smooth [m]:  42 · 60 (138 · 197 ft)  45 (148 ft)
     L x W x H [mm] with fully/semi-automatic (transport position):  6.500/6.380 x 1.850 x 2.400  6.500/6.380 x 1.850 x 2.400
     L x W x H [in] with fully/semi-automatic (transport position):  255.91/251.18 x 72.83 x 94.49  255.91/251.18 x 72.83 x 94.49
     L x W x H [mm] (working position):  7.250 x 2.900 x 2.700  7.250 x 2.900 x 2.700
     L x W x H [in] (working position):  285.43 x 114.17 x 106.30  285.43 x 114.17 x 106.30
     Width with mud pump [mm] (working position):  3.100 (122.05 in)  3.100 (122.05 in)
     Weight max. [kg]:  10.460 (23060 lbs)  11.200 (24692 lbs)
     Engine manufacturer: Cummins  Cummins
     Engine model:  QSB4.5  QSB4.5
     Emissions standard:  T4 final  T4 final
     Max. engine output [kW]:  119 (162 hp)  119 (162 hp)
     Diesel tank capacity [l]:  120 (31.7 gallons)  120 (31.7 gallons)
     AdBlue tank capacity [l]:  22 (5.8 gallons)  22 (5.8 gallons)
     Fresh water / anti-freeze tank capacity [l]:  105 (27.7 gallons)  105 (27.7 gallons)
     Sound pressure level LP [dB(A)]:  73 (73)  73 (73)
     Sound power level LW [dB(A)]:  97  97
     Workplace vibrations [m/s²]:  ≤ 0.5  ≤ 0.5
     Inclination angle:  0° – 20°  0° – 20°
     Max. driving speed [km/h] 2 stages:  1,5/2,6 (0.9/1.6 mph)  1,5/2,6 (0.9/1.6 mph)
     Upsizing Ø* [mm]:  ≤ 500 (≤ 20 in)  ≤ 500 (≤ 20 in)
     Outer pipe Ø* [mm]:  ≤ 400 (≤ 16 in)  ≤ 400 (≤ 16 in)
     Bore length* [m]:  ≤ 350 (≤ 1,148 ft)  ≤ 400 (≤ 1,148 ft)

    * depending on ground
