GRUNDOBURST 800 G
THE RENOVATOR
GRUNDOBURST 800G
THE BEST THING FOR PIPE RENEWAL

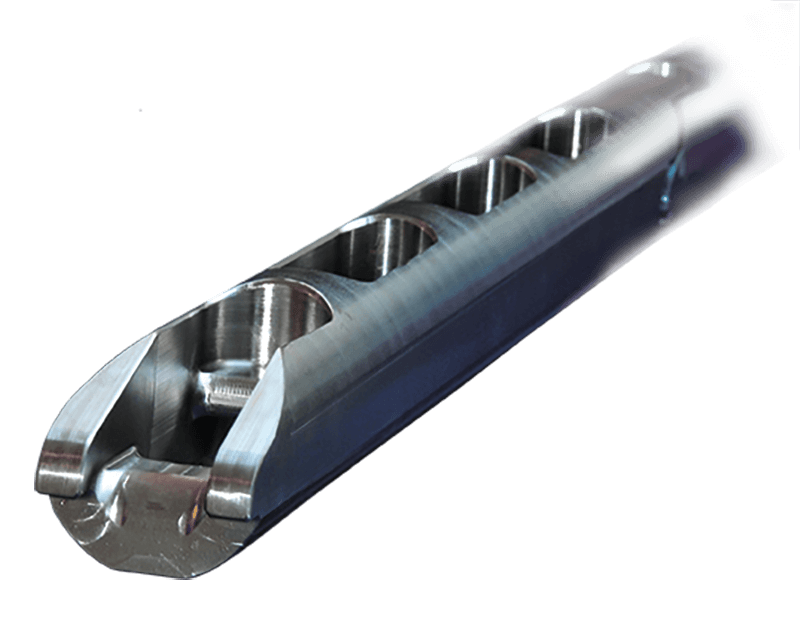

QUICKLOCK BURST RODS
- Quick locking couplings without thread (QuickLock), no lubrication required, therefore no time consuming screwing together required
- Quick rod insertion and removal
- The rods are connected faster than threaded rods
- Absolutely push and pull resistant
- Able to negotiate bends
- Integral production, therefore highly resistant to stress
- Robust, low-wear as clamping is not required
- No slipping back of the rods, due to direct force transmission
- Rod system with convenient rod accessories
- Longer service life than screwed rods
- QuickLock bursting rods are available from 35 mm diameter for pipes from ND 50
- Other rod diameters: 54 mm, 75 mm, 100 mm, 120 mm and 140 mm

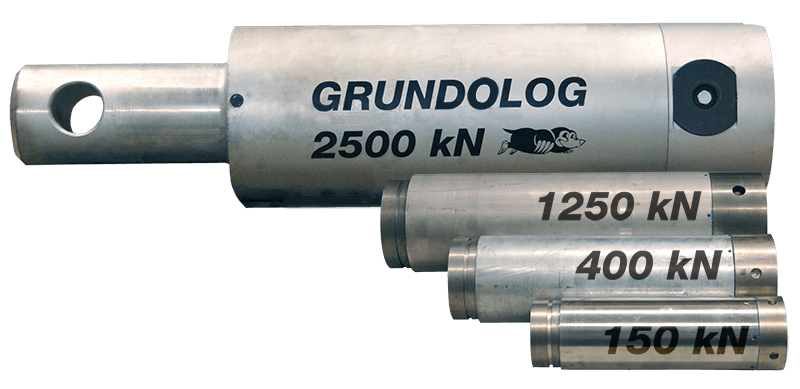

PULLING FORCE MEASUREMENT GRUNDOLOG
- Monitoring and logging of pulling force imparted on new pipe during installation
- Performance categories: 150kN, 400kN, 1,250kN, 2,500kN
- Self-sufficient storage and live transfer of data possible
- Compact dimensions for small pits
- Can be applied from a pit in both directions
- Fast operating cycles and high output
- Rapid rod pushing through old pipe and during new pipe installation
- Quick to get started
- All machine models have remote control
- Low weight for easy transport
- Accessories specific to the procedure
- Stable and job-site specific construction to withstand the highest of loads and strain
- Long service life and low maintenance effort
- Ergonomic operation and high level of work safety
- CE-certified
TECHNICAL SPECIFICATIONS
- For pressure and sewer lines ND 3.14 – 15.75 inches up to approx. 328 ft (procedural)
- Compact dimensions for small pits
- Rapid work cycles and high performance
- Fast rod pushing into the old pipe and fast pulling in of the new pipe
- Can be applied in both directions – from a single pit
- Rapid machine start
- One-man operation with remote control
- Accessories for specific methods
RENEWAL OF AN ASBESTOS CEMENT SEWAGE PRESSURE LINE WITH GRUNDOBURST 800G
The Lower Rhine town of Korschenbroich lies between the metropolitan areas of Mönchengladbach, Krefeld, Neuss and Düsseldorf in the west of Germany. Despite the growing population, Korschenbroich with approximately 5.500 ha has never lost its countryside character in all of its districts. After all, approx. 68 % of the total area are used for agriculture, just under 22 % are residential, commercial and transport areas, the rest divided into recreational, forest and water areas.
TECHNICAL SPECIFICATIONS
|
PERFORMANCE DATA |
GRUNDOBURST 800G TT B110 metrical |
GRUNDOBURST 800G TT B110 imperial
|
|
|---|---|---|---|
| Dimensions of rig LxWxH: | 66.93 x 28.35 x 26.38 in | 1.700 x 720 x 670 mm | |
| Weight of rig: | 1.450 kg | 3,196.70 lbs | |
| Thrust: | 256 kN | 57,551.10 lbf | |
| Pulling force at 250 bar: | 769 kN | 172,878.12 lbf | |

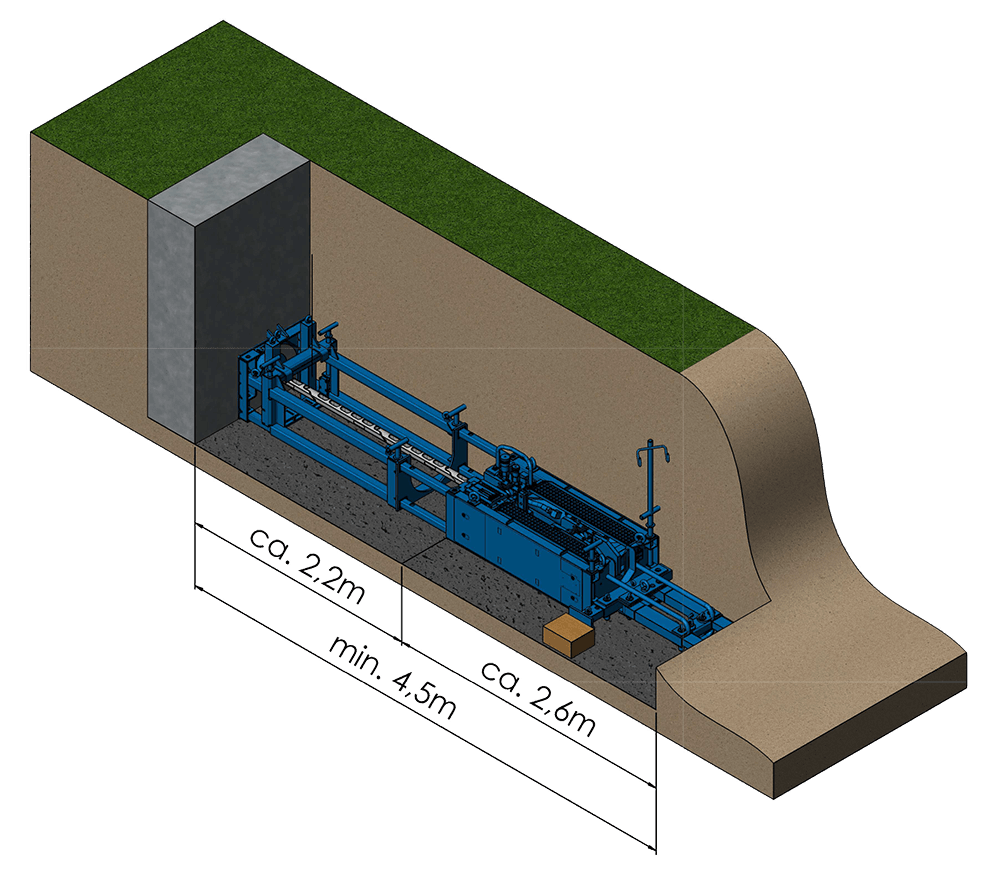

| Pit size LxW: | 4.500 x 1.500 mm | 177.17 x 59.06 in | |
| Axle height: | 250 mm | 9,84 in | |
| Drive output at 2,000 rpm • 2,300 rpm • 3,000 rpm: | – • 55,1 • – kW | – • 73.89 • – hp | |
| Hydr. operating pressure: | 250 bar | 3,625.95 psi | |
| Old pipe Ø: | ND 80 – ND 400 mm | ND 3.15 – ND 15.75 in | |
| For pipe materials: | PVC, PE, stoneware, ductile/grey cast iron, AC, GFRP, steel | PVC, PE, stoneware, ductile/grey cast iron, AC, GFRP, steel | |
| New pipe Ø: | up to OD 400 mm | up to OD 15.75 in | |
| For pipe materials: | PE, PP, stoneware, grey cast iron, GFRP, steel | PE, PP, stoneware, grey cast iron, GFRP, steel | |
| Bursting rod Ø: | 75 mm | 2.95 in | |
| Bursting rod Ø alternative: | 54 (max. 400 kN) mm | 2.13 (max. 89,923.60 kN) in | |
| Bursting rod weight: | 13 kg | 28.66 lbs | |
| Effective bursting rod length: | 750 mm | 29.53 in |
