GRUNDODRILL 4X
COMPACT CATEGORY
CONSUMES LITTLE, ACHIEVES A LOT

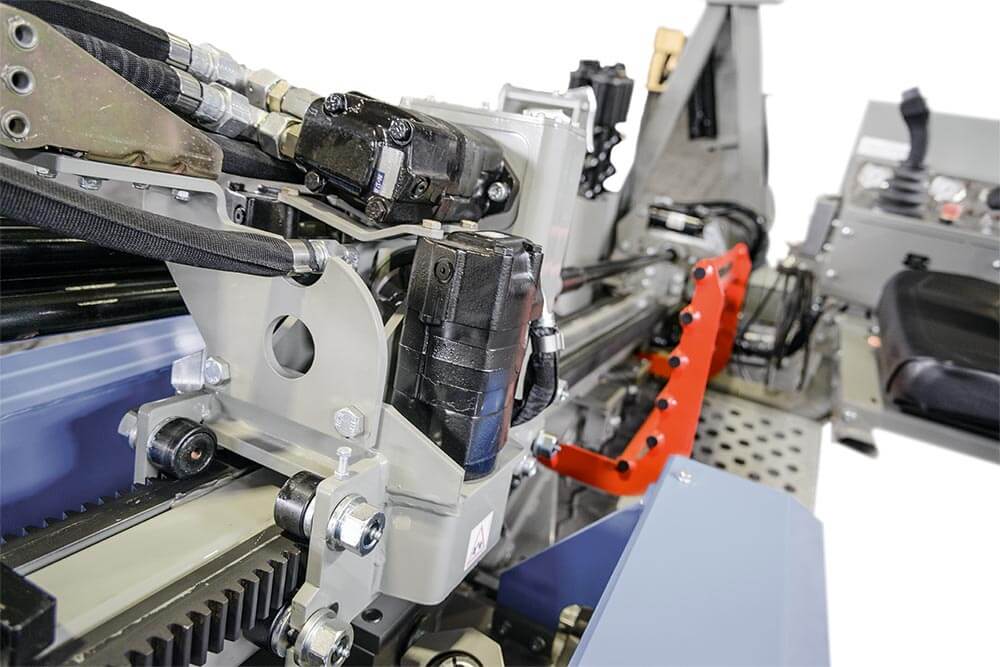

ROTARY DRIVE
Compact high-performance rotary drive with rack and pinion

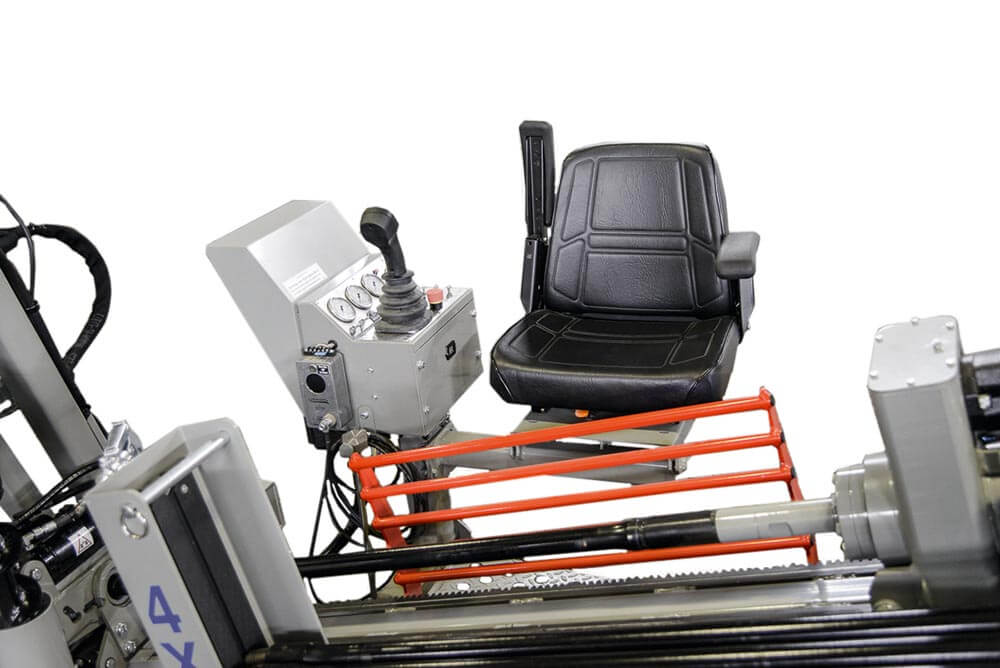

CONTROL STAND
With the clearly laid-out control panel and a multifunctional joystick

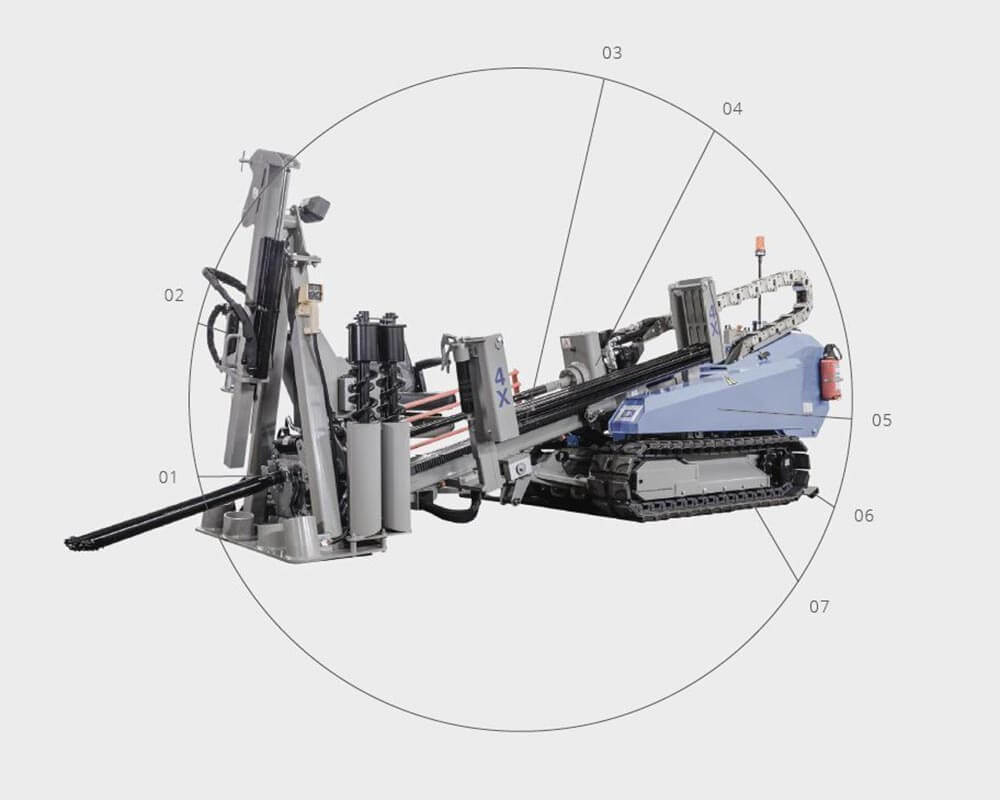

01. Hydraulic rod clamp
02. Hydraulic anchor drilling system for stability while drilling
03. Rod magazine for 48m of drill rods (32 rods)
04. High-capacity rotary drive with 1,300 Nm and 230 rpm
05. Kubota diesel motor with 28 kW driving power
06. Stabilisors – maximal self-support, variable inclination of the cradle for an optimal penetration angle
07. Rubberised steel track undercarriage – extreme off-road performance and stability
Compact design for working in the most confined spaces
- Kubota diesel engine with 28 kW drive power
- Control stand with clearly arranged control panel
- 1 multifunctional joystick
- Drill rod type: 4X
- Hydraulic anchoring unit pivotable in four positions
- Remote control
- Rod magazine with 32 rods for 48 m
- Stabilisers, rubberized steel tracks
- Rack & Pinion drive

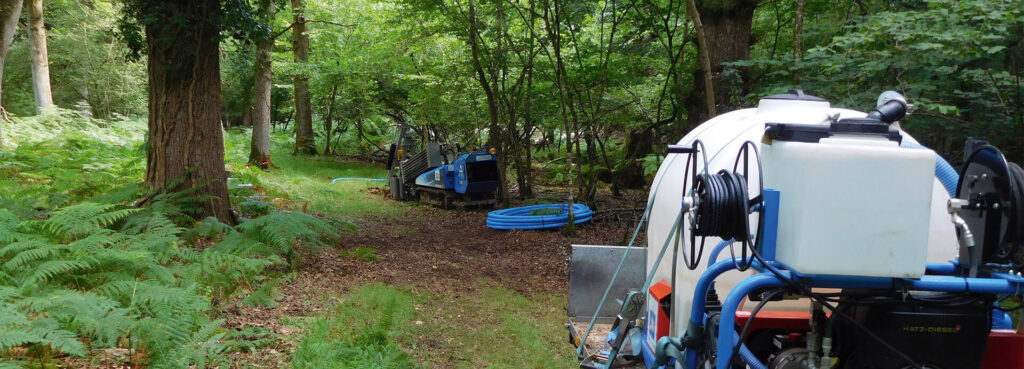

The compact HDD small drilling rig GRUNDODRILL 4X was able to prove its versatility in various construction projects in Great Britain. The applications ranged from the installation of a fresh water pipe to supply free-ranging cattle in a protected forest area to the installation of power cables for the operation of an innovative solar system on a private property.
In addition, data cables were installed in two construction projects: On the one hand as a connection of two office buildings of a car dealer in a heavily frequented industrial area and on the other hand at a crossing under a country road. All four applications had in common the particular local conditions, such as cramped and sometimes difficult to access space or the requirement to damage the existing surfaces as little as possible.
Exactly the conditions for which the trenchless HDD technology in detail and the GRUNDODRILL 4X in particular are predestined due to its manoeuvrability and its low weight, and thus scored points all along the line.
| Performance Data | Drill Rod TT 2 metrical 2 | Drill Rod TT 2 imperial |
|---|---|---|

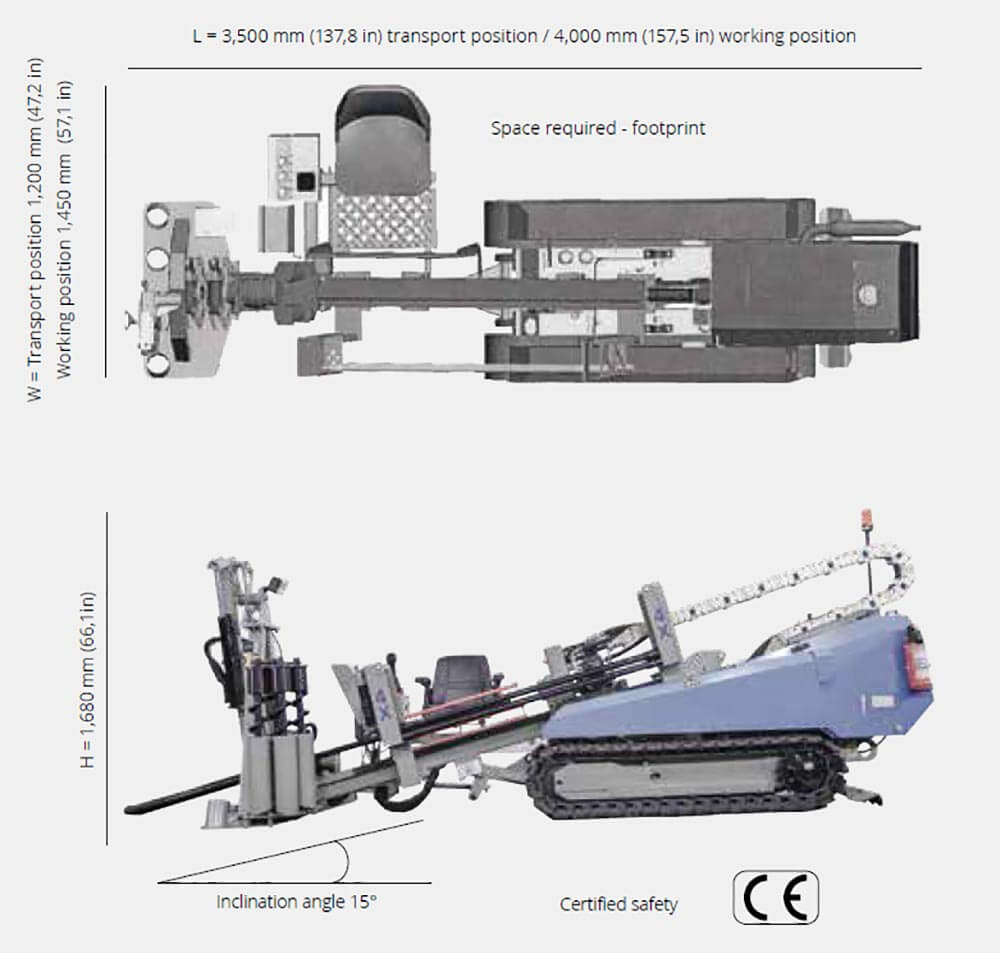

| L x W x H (transport position): | 3.500 x 1.200 x 1.760 mm | 137.8 x 47.2 x 69.3 in |
| L x W x H (working position): | 4.000 x 1.450 x 1.680 mm | 157.5 x 57.1 x 66.1 in |
| Max. weight incl. rods: | 2.160 kg | 4,762 lbs |
| Rod magazine contents: | 48 m | 157 ft |
| Number of rods: | 32 pcs | 32 pcs |
| Inclination angle: | 15° | 15° |
| Thrust and pullback force: | 43 kN | 9.67 lbf |
| Max. feed rate (without load): | 32,3 m/min | 106 ft/min |
| Max. torque: | 1.300 Nm | 959 lbf ft |
| Max. spindle speed: | 230 rpm | 230 rpm |
| Pilot bore Ø: | 80 mm | 3.15 in |
| Drill rods Ø: | 48/38 mm | 1.89/1.50 in |
| Effective rod length: | 1.500 mm | 59 in |
| Drill rod weight: | 9 kg | 19.84 lbs |
| Upsizing Ø*: | ≤ 250 mm | ≤ 9.84 in |
| Outer pipe Ø*: | ≤ 160 mm | ≤ 6.30 in |
| Bore length*: | ≤ 100 m | ≤ 328 ft |
| Min. bore radius: | 25 m | 82 ft |
| Max. driving speed, 2 stages: | 2 km/h | 1.2 miles/h |
| Sound pressure level LP: | 83,5 dB(A) | 83,5 dB(A) |
| Sound power level LW: | 103 dB(A) | 103 dB(A) |
| Engine manufacturer: | Kubota | Kubota |
| Engine model: | V 1505 | V 1505 |
| Emissions standard: | 3A / T4 | 3A / T4 |
| Max. engine output: | 28,5 kW | 38.8 hp |
| Diesel tank: | 42 l | 11.1 gallons |
* depending on ground
