GRUNDODRILL 15XP / 15XPT

GRUNDODRILL – 15XP / 15XPT

ALLROUNDERS

SUCCESSFUL DUO
EFFICIENTLY FLEXIBLE

MAXIMUM FLOW RATE

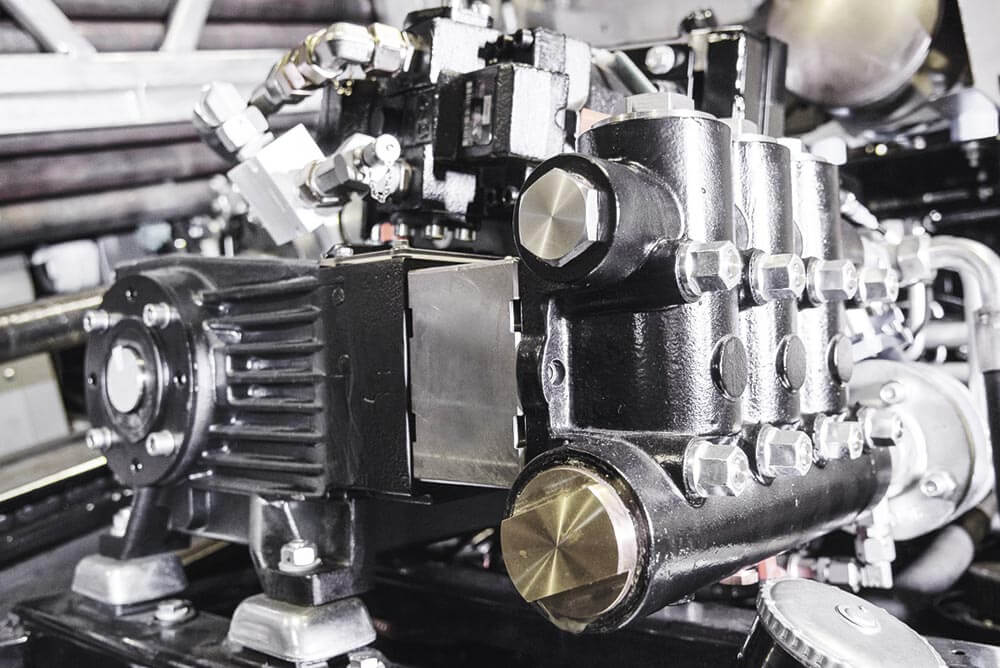

The Bentonite pump delivers max. 200 or 320 l/min for maximum productivity and quick drilling progress, even with large upsizing diameters

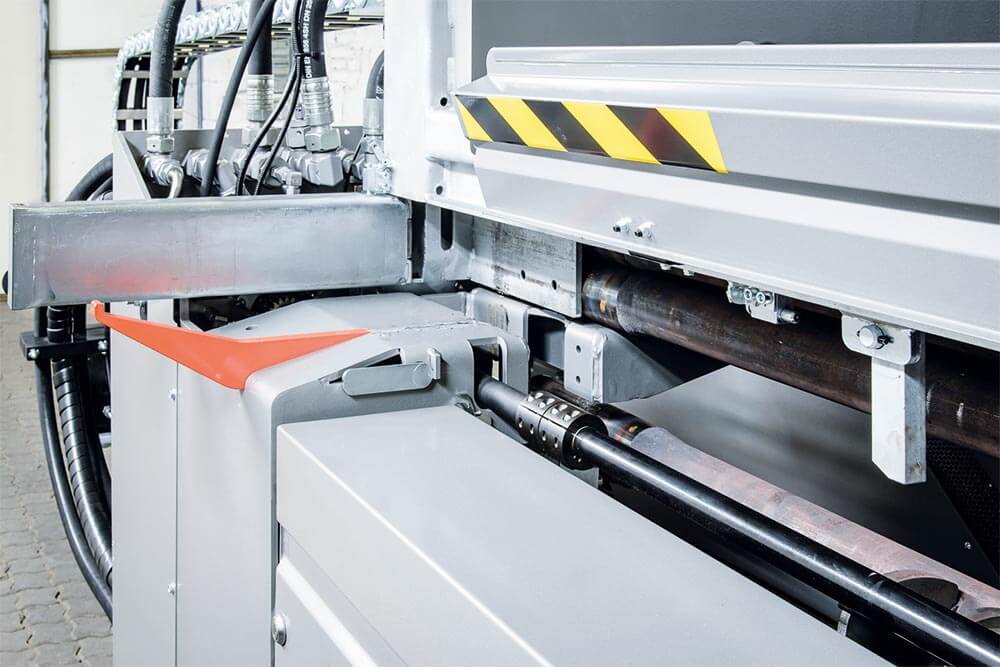

SIMPLE RELOADING

If the rod supply in the magazine is not sufficient for the operation, single rods can be reloaded.
The drill rod is placed into the side feeding device by hand, from where it is transported to the magazine automatically.
The rod magazine works fully automatically inreloading mode – therefore no machine operator is required in the cabin.

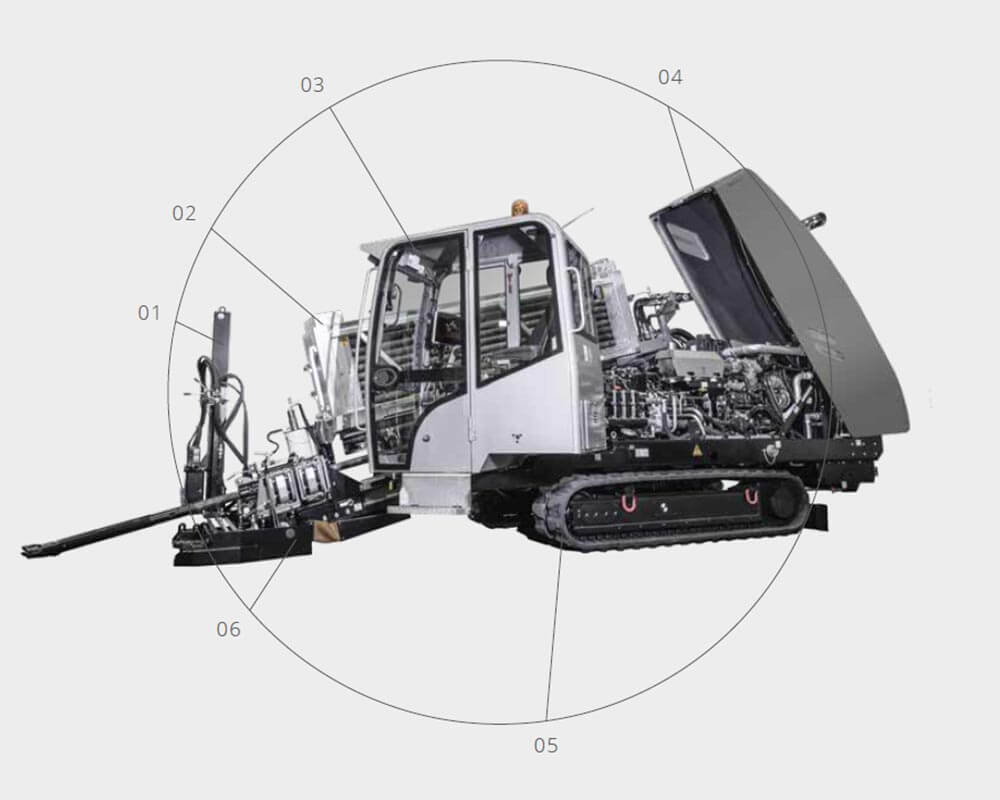

01. Anchor drilling system for even greater stability during drilling – optionally available with anchoring hammer system. Integrated high-pressure cleaner – for convenient cleaning of the drill rig for automatic cleaning of drill rods during upsizing/pipe pulling
02. Spacious rod magazine with to 210 m on board. Option: Fully automatic rod exchange for high productivity and relief of the machine operator. Rotation of the drill rods within the rod box during normal operation for even wear of the drill rods.
03. Comfortable swivelling cabin user-friendly, clearly arranged, flexibly positionable
04. Large GFRP service hood easily accessible for service and maintenance
05. Broad, rubber track undercarriage – extremelyeffective off-road and stable, optionally also available with rubberised steel chains
06. Collecting tray for Bentonite with (optional) Bentonite suction pump

GROUND CONTROL

FULL VISION, MAXIMUM COMFORT

MAXIMUM OPERATING COMFORT

Manual mode:

All machine functions controlled by the machine operator

Semi-automatic mode:

Memory functions for rotation and feed, Automatic paddle mode*, Automatic rod exchange mode*, Automatic reloading for rod magazine*

Fully automatic mode*:

incl. automatic drilling, automatic rod change, rod lubrication and cleaning, etc.

Service mode:

Complete diagnosis of drilling system via integrated display, Complete parameter setting/adjustment of drilling rig via integrated display

TOP WORKPLACE

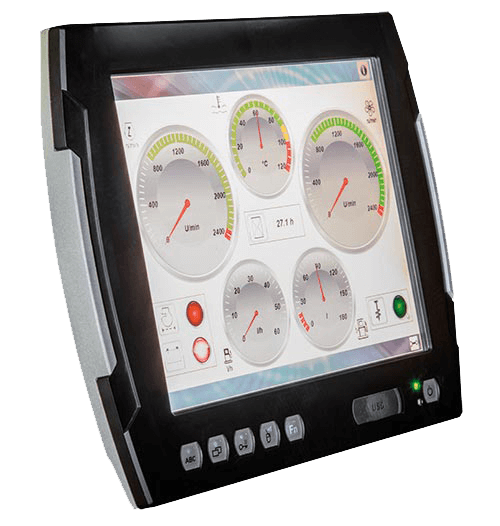

Panel PC with touchscreen and internet connection
High-resolution colour display
Language selection
Automatic drill data log according to DVGW standards
Remote diagnosis with telemetry data transfer
LED lighting
Radio with Bluetooth hands-free system, CD drive and USB port

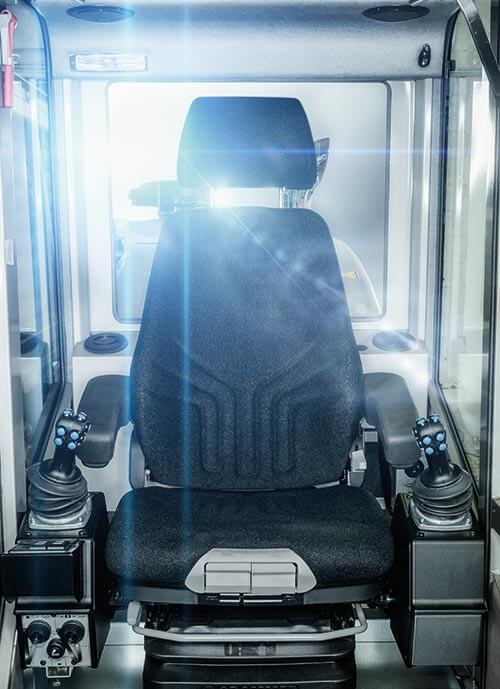

CUSTOM ERGONOMICS

Grammer comfort seat
- Mechanical suspension, manual weight distribution
- Can be adjusted individually
- Leatherette upholstery
Panorama glazing for optimum overview
Swivelling cabin, can be locked in 5 positions
- If required, work can also be carried out with the cabin in transport position
Heating and air conditioning*

*optional

TECHNICAL SPECIFICATIONS

BASIC EQUIPMENT

Cummins engine Tier 4 final, Stage IV
Drill rig with rubber track undercarriage, stabiliser
Radio remote control

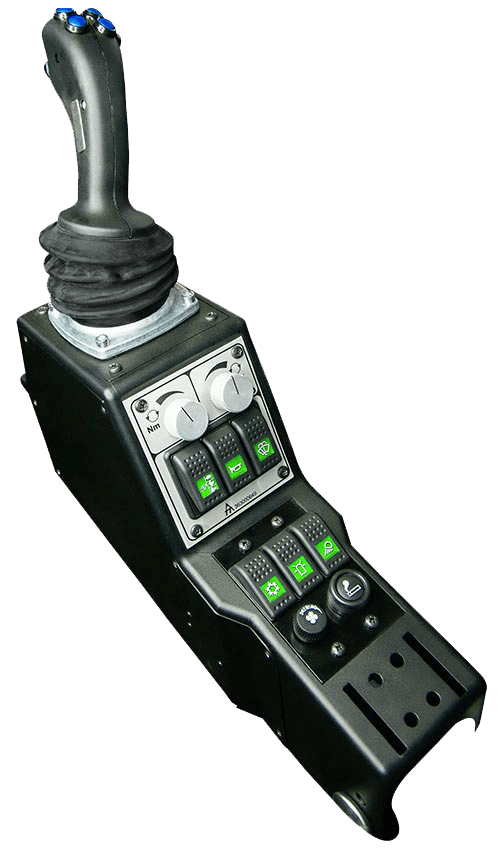

Spacious cabin, comfort seat, joysticks, panel PC with touch screen
Bore automatics
Semi-automatic rod exchange system

Semi-automatic clamping and releasing device
Anchoring system with Bentonite collection tray
Powerful Bentonite HP pump on board the rig
Bore data log – Data transmission
HP cleaner
Optional: bore automatics, percussive unit, rubberized steel tracks, air conditioning system

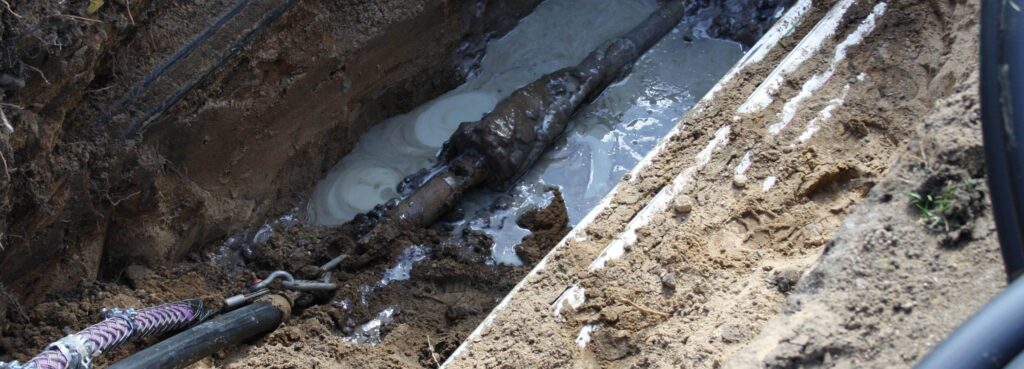

BACKBONE CONNECTION WITH GRUNDODRILL 15XP

The list of Germany’s so-called households with poor access to modern data networks is still quite long, despite the German Government’s Digital Agenda, claiming that the NGA-Networks („Next Generation Access“) were supposed to be made available to the whole country by the end of 2018. This is not a great surprise, as the time from the application being sent to the German Support Programme for Digitalisation up to the surf start on home computers being stretched to the limit, much longer than expected.
