    THE RENOVATOR

    GRUNDOBURST 400S
    THE BEST THING FOR PIPE RENEWAL

    QUICKLOCK BURST RODS
    • Quick locking couplings without thread (QuickLock), no lubrication required, therefore no time consuming screwing together required
    • Quick rod insertion and removal
    • The rods are connected faster than threaded rods
    • Absolutely push and pull resistant
    • Able to negotiate bends
    • Integral production, therefore highly resistant to stress
    • Robust, low-wear as clamping is not required
    • No slipping back of the rods, due to direct force transmission
    • Rod system with convenient rod accessories
    • Longer service life than screwed rods
    • QuickLock bursting rods are available from 35 mm diameter for pipes from ND 50
    • Other rod diameters: 54 mm, 75 mm, 100 mm, 120 mm and 140 mm

    PULLING FORCE MEASUREMENT GRUNDOLOG

    • Monitoring and logging of pulling force imparted on new pipe during installation
    • Performance categories: 150kN, 400kN, 1,250kN, 2,500kN
    • Self-sufficient storage and live transfer of data possible
    • Compact dimensions for small pits
    • Can be applied from a pit in both directions
    • Fast operating cycles and high output
    • Rapid rod pushing through old pipe and during new pipe installation
    • Quick to get started
    • All machine models have remote control
    • Low weight for easy transport
    • Accessories specific to the procedure
    • Stable and job-site specific construction to withstand the highest of loads and strain
    • Long service life and low maintenance effort
    • Ergonomic operation and high level of work safety
    • CE-certified
    TECHNICAL SPECIFICATIONS
    • For pressure and sewer lines ND 1.97 – 9.84 inches up to app. 328 ft length (procedural) for installation in manholes ≥ ND 1000 and in small pits
    • Pulling rig length only 23.62 inches
    • Effective rod length in the manhole: 18.05 inches
    • Relatively simple operation in the manhole
    • No excavation when working from manhole to manhole
    • All-round working safety
    TECHNICAL SPECIFICATIONS

    PERFORMANCE DATA
    GRUNDOBURST 400S TT B110 OR TT B20 metrical
    GRUNDOBURST 400S TT B110 OR TT B20 imperial
     Dimensions of rig LxWxH: 600 x 490 x 340 mm 23.62 x 19.29 x 13.39 in
     Weight of rig: 200 kg 440.92 lbs
     Thrust:  275 kN  61,822.48 lbf
     Pulling force at 250 bar:  400 kN  89,923.60 lbf

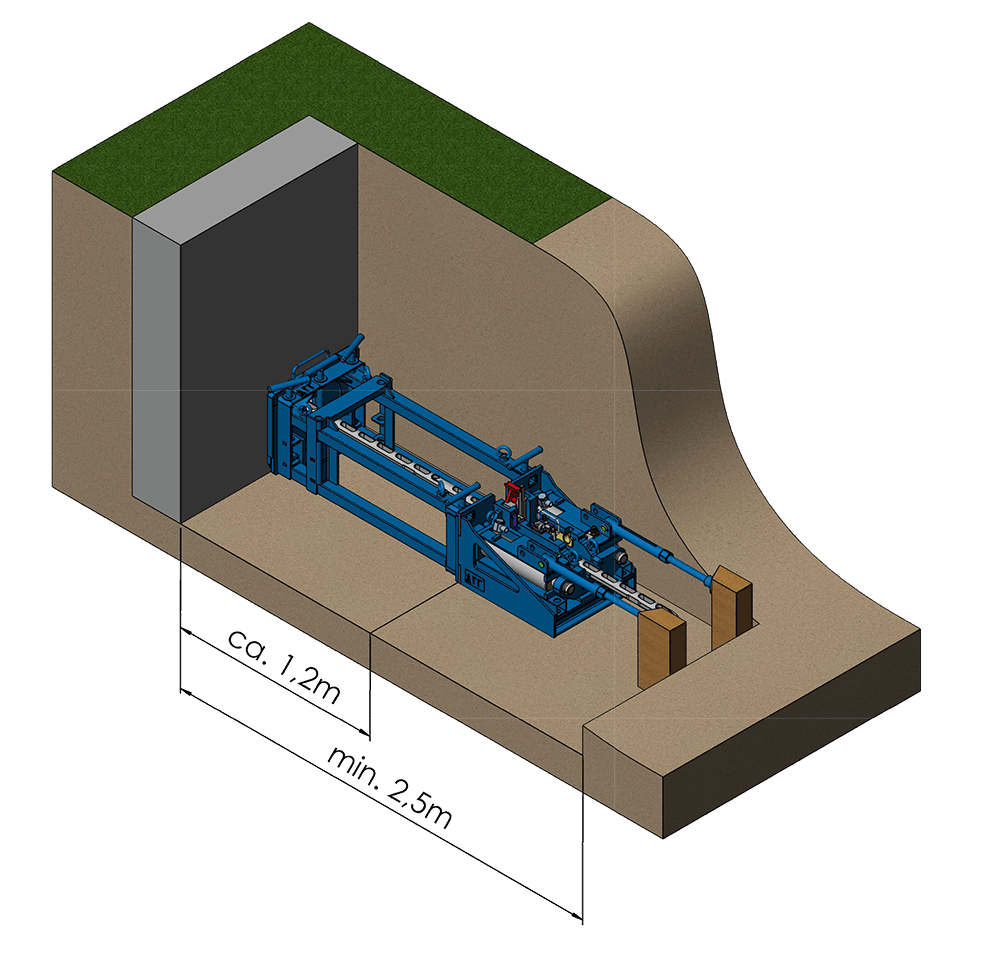

     Pit size LxW: 2.500 x 1.100 mm, manhole min. Ø 1.000 mm 98.43 x 43.31 in, manhole min. Ø 39.37 in
     Axle height: Pit: 220 manhole: 140 mm Pit: 8.66 manhole: 5.51 in
     Drive output at 2,000 rpm • 2,300 rpm • 3,000 rpm:  – • 55,1 • 24,4 kW  – • 73.89 • 32.72 hp
     Hydr. operating pressure:  250 bar  3,625.95 psi
     Old pipe Ø:  ND 50 – ND 250 mm  ND 1.97 – ND 9.84 in
     For pipe materials:  PVC, PE, stoneware, ductile/grey cast iron, AC, GFRP, steel  PVC, PE, stoneware, ductile/grey cast iron, AC, GFRP, steel
     New pipe Ø:  up to OD 280 mm  up to OD 11.02 in
     For pipe materials:  PE, PP, stoneware, grey cast iron, GFRP, steel  PE, PP, stoneware, grey cast iron, GFRP, steel
     Bursting rod Ø:  54 mm  2.13 in
     Bursting rod Ø alternative:  35 (max. 200 kN) mm  1.38 (max. 44,961.80 kN) in
     Bursting rod weight:  5 kg  11.02 lbs
     Effective bursting rod length:  470 mm  18.50 in
