GRUNDOBURST 400 G
THE RENOVATOR
GRUNDOBURST 400G
THE BEST THING FOR PIPE RENEWAL
QUICKLOCK BURST RODS
- Quick locking couplings without thread (QuickLock), no lubrication required, therefore no time consuming screwing together required
- Quick rod insertion and removal
- The rods are connected faster than threaded rods
- Absolutely push and pull resistant
- Able to negotiate bends
- Integral production, therefore highly resistant to stress
- Robust, low-wear as clamping is not required
- No slipping back of the rods, due to direct force transmission
- Rod system with convenient rod accessories
- Longer service life than screwed rods
- QuickLock bursting rods are available from 35 mm diameter for pipes from ND 50
- Other rod diameters: 54 mm, 75 mm, 100 mm, 120 mm and 140 mm
PULLING FORCE MEASUREMENT GRUNDOLOG
- Monitoring and logging of pulling force imparted on new pipe during installation
- Performance categories: 150kN, 400kN, 1,250kN, 2,500kN
- Self-sufficient storage and live transfer of data possible
- Compact dimensions for small pits
- Can be applied from a pit in both directions
- Fast operating cycles and high output
- Rapid rod pushing through old pipe and during new pipe installation
- Quick to get started
- All machine models have remote control
- Low weight for easy transport
- Accessories specific to the procedure
- Stable and job-site specific constructionto withstand the highest of loads and strain
- Long service life and low maintenance effort
- Ergonomic operation and high level of work safety
- CE-certified
TECHNICAL SPECIFICATIONS
- For pressure and sewer lines ND 1.97 – 9.84 inches up to approx. 328 ft lengths (procedural)
- Compact dimensions for small pits
- Rapid work cycles and high performance
- Fast rod pushing in the old pipe and fast pulling in of the new pipe
- Light weight for simple transportation
- Can be applied in both directions – from a single pit
- Simple installation and rapid machine start
- One-man operation with remote control
- Accessories for specific methods
TECHNICAL SPECIFICATIONS
|
PERFORMANCE DATA |
GRUNDOBURST 400G TT B110 OR TT B20 metrical |
GRUNDOBURST 400G TT B110 OR TT B20 imperial
|
|---|---|---|
| Dimensions of rig LxWxH: | 1.420 x 560 x 520 mm | 55.91 x 22.05 x 20.47 in |
| Weight of rig: | 560 kg | 1,234.59 lbs |
| Thrust: | 275 kN | 61,822.48 lbf |
| Pulling force at 250 bar: | 400 kN | 89,923.60 lbf |

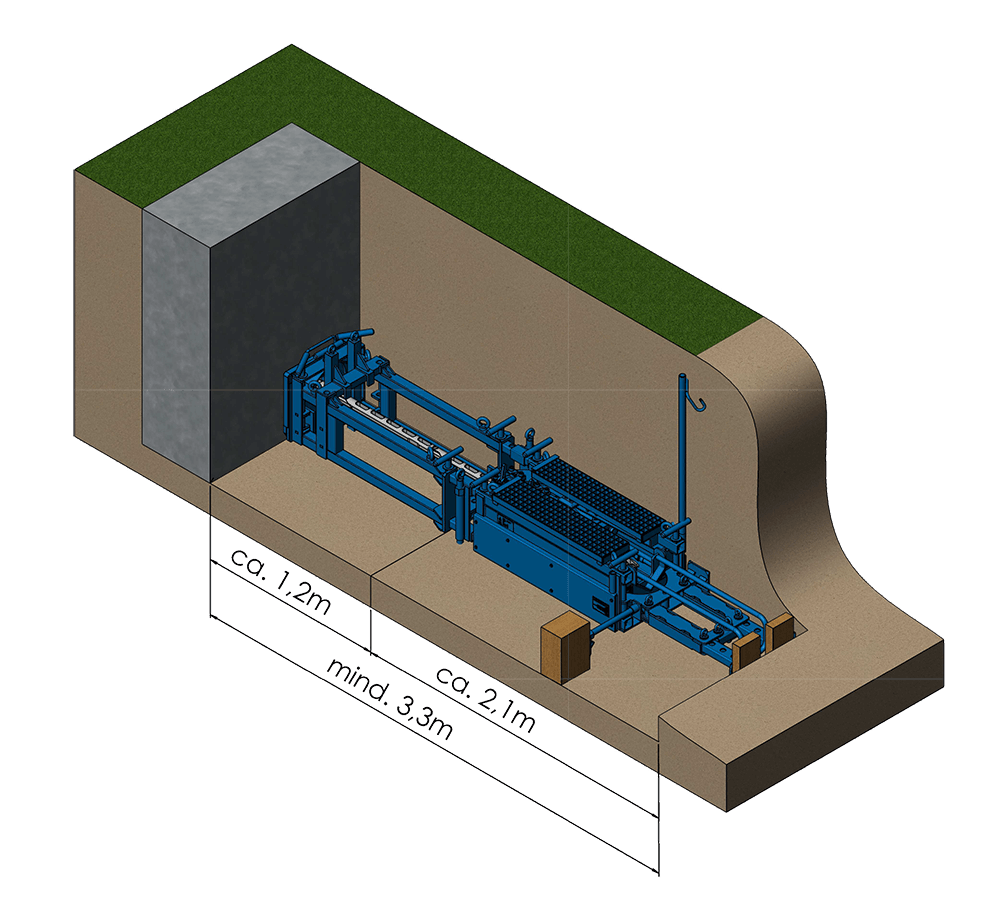

| Pit size LxW: | 3.300 x 1.100 mm | 129.92 x 43.31 in |
| Axle height: | 230 mm | 9,06 in |
| Drive output at 2,000 rpm • 2,300 rpm • 3,000 rpm: | – • 55,1 • 24,4 kW | – • 73.89 • 32.72 hp |
| Hydr. operating pressure: | 250 bar | 3,625.95 psi |
| Old pipe Ø: | ND 50 – ND 250 mm | ND 1.97 – ND 9.84 in |
| For pipe materials: | PVC, PE, stoneware, ductile/grey cast iron, AC, GFRP, steel | PVC, PE, stoneware, ductile/grey cast iron, AC, GFRP, steel |
| New pipe Ø: | up to OD 280 mm | up to OD 11.02 in |
| For pipe materials: | PE, PP, stoneware, grey cast iron, GFRP, steel | PE, PP, stoneware, grey cast iron, GFRP, steel |
| Bursting rod Ø: | 54 mm | 2.13 in |
| Bursting rod Ø alternative: | 35 (max. 200 kN) mm | 1.38 (max. 44,961.80 kN) in |
| Bursting rod weight: | 7,5 kg | 16.53 lbs |
| Effective bursting rod length: | 700 mm | 27.56 in |
