D600 Remote Controlled Trencher
D600 Remote Controlled Trencher is a powerful and compact machine capable of creating trenches in narrow spaces. Easily can work on a sidewalk while the operator has a clear view of the machine and working place. When working on the road the traffic disturbance is minimum due to its small width.
The good combination of engine and hydraulic system give the machine a strong performance while working in Soil, Asphalt and even Concrete.
The advanced depth regulation system design, gives a trouble-free operation of the rock saw without damages.
The robust heavy duty undercarriage system is selected to minimize vibration damages.
An ergonomic remote control with alarms related to machine status provide additional awareness to operator.
The remote control incorporates machine status signals giving early information in case of malfunction.

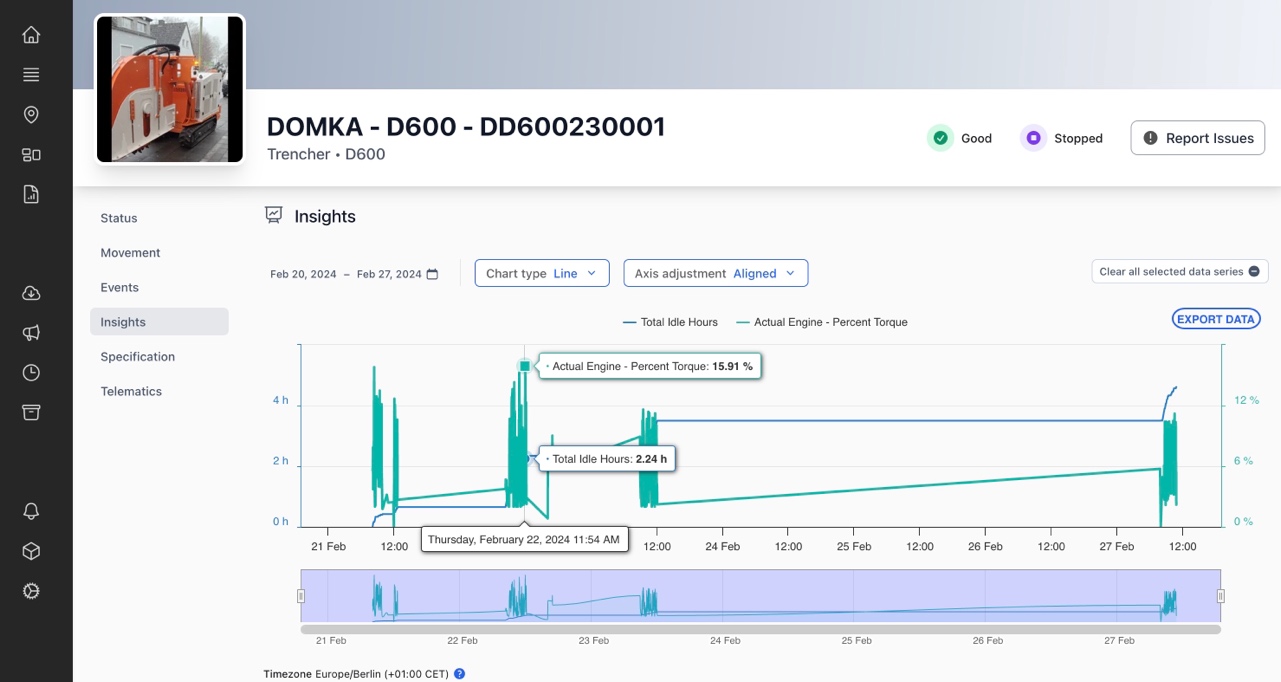

The remote monitoring system which is offered as a standard feature on D600 can give you information about the location of the machine and provide protection against theft through alarm activation.
Reports can be created in the system provide valuable information related to production, downtime and comparative data.
The system sends service reminders based on actual hours of operation or predefined period. The reminders are sent via email or app notification on the smart phone.
At the same time the system sends error messages when a problem occurs.
Most importantly, the installed system gives to maintenance people the ability to see real time machine parameters and collect remotely information about the status of the machine and potential malfunctions. Historical data can be retrieved easily and used for comparison with other periods or in relation to other parameters at the same period through easy to use graphs.
DIMENSIONS L x W x H : 4.079 x 1.100 x 1.834 mm
WEIGHT : 3500 Kg
| Max trench depth : | 600 mm |
| Trench Width : | 80, 100, 120, 140, 160 mm |
ENGINE :
| Max. Power kW(HP) @ rpm | 55 (75) @ 2,600 |
| Max. Torque Nm(lb-ft) @ rpm | 320 (236) @ 1,600 |
| Cylinder capacity | 2.4 lt |
| Engine manufacturer | Doosan |
| Emissions standard | Tier 4 Final / Stage V |
UNDERCARRIAGE :
| Fuel tank capacity : | 70 lt |
| Hydraulic Tank Capacity : | 80 lt |
| Noise Level: | 112 DB |
